DRILL BUSHINGS - Air Feed Drill Bushing Tips & Accessories

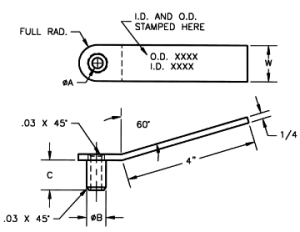

  • HANDLE BUSHING HB TYPE
The handle bushing is a portable bushing holder which is excellent for drilling holes that are hard to reach with stationary tooling. A wide range of I.D. sizes and lengths are available.

When ordering specify the I.D. O.D. and the length. Handle bushings will be priced upon request by Dal-Tex.

(A)
I.D. RANGE
(B)
O.D.Tolerance:
- .001 + .000
(C)LENGTHS

W

5/16
3/8
1/2
 5/8
3/4

1

#55-1/16

.0520
.0625

5/32

.1552

?
?

-
-
-

3/4

#55-#39

.0635
.0995

3/16

.1865

?
?
?
-
-
-

3/4

#40-9/64

.0980
.1406

1/4

.2490

?
?
?
?
?
?

3/4

1/8-#10

.1250
.1935

5/16

.3115

-
?
?
?
?
?

3/4

#10-#1

.1935
.2280

3/8

.3740

-
?
?
?
?
?

3/4

3/16-F

.1875
.2570

13/32

.4052

-
?
?
?
?
?

3/4

A-L

.2340
.2900

7/16

.4365

-
?
?
?
?
?

3/4

3/16-O

.1875
.3160

1/2

.4990

-
?
?
?
?
?

1

M-11/32

.2950
.3437

9/16

.5615

-
-
?
?
?
?

1

5/16-7/16

.3125
.4375

5/8

.6240

-
-
?
?
?
?

1

5/16-17/32

.3125
.5312

3/4

.7490

-
-
?
?
?
?

1
