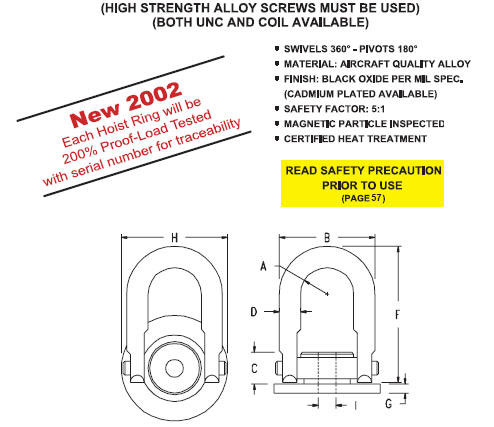

ACTEK® Round Base Swivel & Pivot Hoist Ring
- Swivel 360 ° and pivots 180 °.
- Direct mounting.
- Wide round base helps distribute shear loads.
- Aircraft quality �chrome moly� and heat-treated.
- Magnetic particle inspected.
- Rated load capacities from 2,500 lbs. to 20,000 lbs.
- Many OEM applications.
- Perfect for pre-cast concrete products: simply cast a threaded anchor or stud into the concrete part. Mount the hoist ring and you have an easy, safe lifting/handling application.
- Safety factor: 5:1.
- Note: Thread engagement should be 1-1/2 times the diameter of the equivalent of Grade 8 alloy screw.
| 44646 |
2,500 |
0.88 |
3-1/4 |
1-7/64 |
3/4 |
3-1/2 |
6-3/4 |
1/4 |
1/2 |
28 |
3.5 |
| 44642 |
4,000 |
0.88 |
3-1/4 |
1-7/64 |
3/4 |
3-1/2 |
6-3/4 |
1/4 |
5/8 |
60 |
3.5 |
| 44654 |
5,000 |
0.88 |
3-1/4 |
1-7/64 |
3/4 |
3-1/2 |
6-3/4 |
1/4 |
3/4 |
100 |
3.5 |
| 44660 |
7,000 |
1.40 |
4-13/16 |
1-1/2 |
1 |
5 |
8-7/64 |
13/32 |
3/4 |
100 |
9.0 |
| 44656 |
8,000 |
1.40 |
4-13/16 |
1-1/2 |
1 |
5 |
8-7/64 |
13/32 |
7/8 |
160 |
9.0 |
| 44666 |
10,000 |
1.40 |
4-13/16 |
1-1/2 |
1 |
5 |
8-7/64 |
13/32 |
1 |
|
9.0 |
| 44802 |
15,000 |
1.75 |
6 |
1-7/8 |
1-1/4 |
7 |
8-3/4 |
1/2 |
1-1/4 |
470 |
17.0 |
| 44803 |
15,000 |
1.75 |
6 |
1-7/8 |
1-1/4 |
7 |
8-3/4 |
1/2 |
1-1/2 |
800 |
17.0 |
| 44704 |
20,000 |
2.00 |
7-11/32 |
2 |
1-1/2 |
7 |
10-3/16 |
1/2 |
1-1/2 |
800 |
24.0 |
| 44404 |
24,000 |
2.25 |
8 |
2-3/8 |
1-3/4 |
7 |
12-1/2 |
1/2 |
1-1/2 |
800 |
40.0 |
| 44406 |
24,000 |
2.25 |
8 |
2-3/8 |
1-3/4 |
7 |
12-1/2 |
1/2 |
1-3/4 |
800 |
40.0 |
| 44408 |
30,000 |
2.25 |
8 |
2-3/8 |
1-3/4 |
7 |
12-1/2 |
1/2 |
2 |
800 |
40.0 |
|
|
|
|
|
|
|
|
|
|
|
|
|
| |
|
|
|
|
|
|
